LEICA TS-APO-Elmar-S 120mm f5.6 ASPH. Cat #11079 New /(Shift Lens) – Free shipping (USA)

Description

LEICA TS-APO-Elmar-S 120mm f5.6 ASPH. Cat #11079 New

We proudly present a new lens by Leica Camera, the Leica TS-APO-Elmar-S 1:5.6/120mm ASPH.
Similar to the movements of a view camera, the Leica TS-APO-ELMAR-S 120mm f5.6 ASPH., gives the photographer complete control over the perspective and the focal plane. The lens is characterized by an image circle increased by 153mm, which means that the lens can be shifted by up to 12 mm from the optical axis in any direction. This allows the user to change the view without changing the perspective, thus supporting, for example, product shots without irritating converging lines.
Independent of the shift, you can tilt the lens by up to 8° in any direction, thus tilting the focal plane in line with Scheimpflug’s principle.

BENEFITS AT A GLANCE
▸ Tele-tilt-shift lens for high-accuracy perspective and focus control
▸ Large tilt range for maximum depth of field (Scheimpflug principle)
▸ Parallel shift to correct converging lines
▸ Precise stitching
▸ Maximum contrast, and resolution at all apertures over the entire focusing range
▸ Brilliant, pure color reproduction

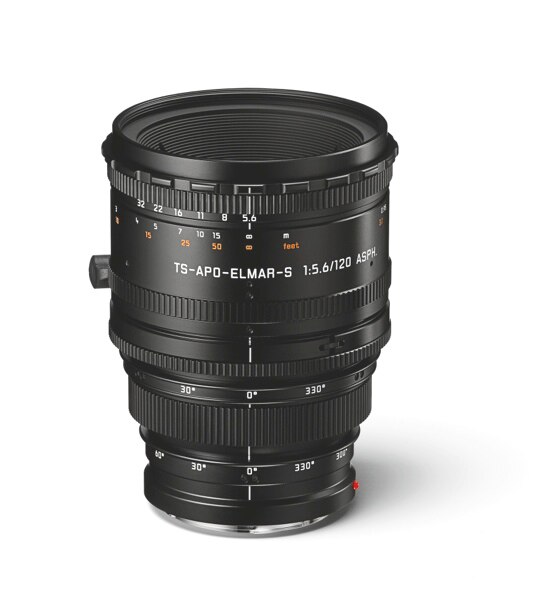

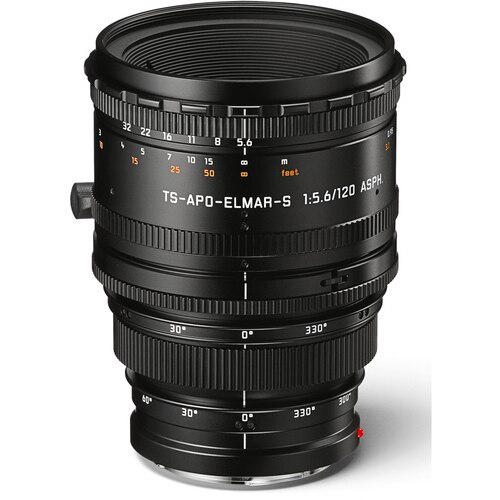

The exterior of the Leica TS-APO-Elmar-S 120mm f5.6 ASPH. is different from that of other S lenses, due to its special design as a tilt/shift lens.

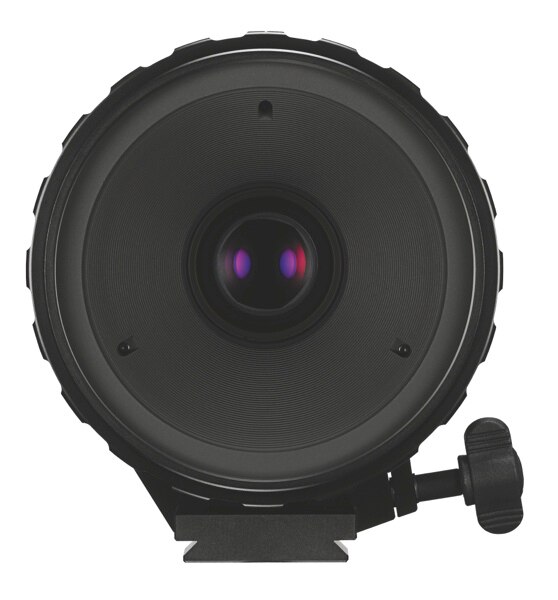

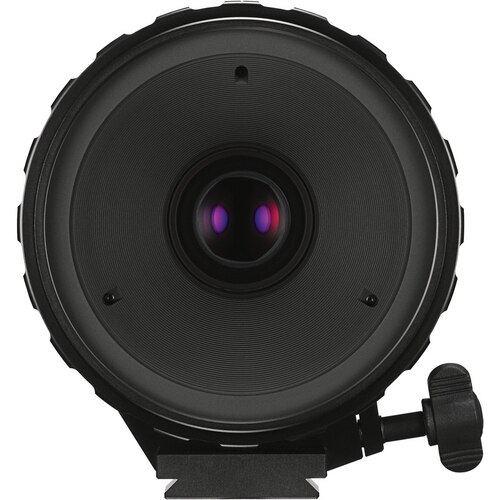

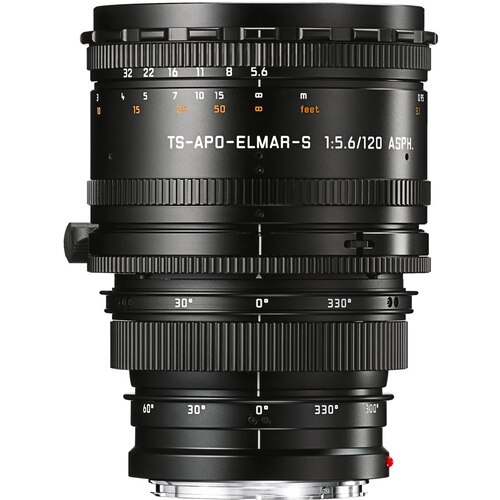

The lens has a total of four rings for tilt and shift, one turn-and-slide ring each for adjusting the tilt and shift directions,and one ring each for adjusting the tilt and swing respectively. It additionally features a tripod plate with a 1/4″ and a 3/8″ thread, which allows the user to fix the lens in any orientation thanks to the rotating clamp and clamping screw.
The lens’s large image circle simultaneously supports a shift of up to 12 mm and a tilt of up to 8°. Both the tilt and the shift mechanisms rotate through 360°, so that the respective adjustments can be made in any direction and independently of one other.

Applications:
▸ Product
▸ Advertising
▸ Still-life
Scope of delivery Leica TS-APO-Elmar-S 120mm f5.6 ASPH.
Lens with lens hood, rear cap, front lens cap E95, lens pouch, manual, warranty card, test certificate

Technical Details
Lens type Tele-tilt/shift lens, compatible with all Leica S camera models
Viewing angle approx. 23 °, 20 °, 13° (diagonal, horizontal, vertical), corresponds to approx. 96mm focal length in 35mm
Optical design Number of lens elements/groups 6/4, aspherical surfaces 1, Position of entrance pupil: 65.6 mm (to bayonet)
Focus Working range 0.92 m to ∞, scales combined meters/feet,
Smallest object field/largest scale: approx. 159x239mm / 1:5.3
Image circle 153mm (equivalent to approx. 2.8x the Leica S format)
Tilt/shift Tilt angle: max 8° in all directions / Shift: max.12mm in all directions
Aperture Manual pre-set aperture, adjustment and opening/closing by separate rings, adjustable in one-third steps,
smallest value f32
Bayonet Leica S bayonet
Filter mount Threaded mount for E95 filters, non-rotating filter mount
Surface finish Black anodized
Dimensions Length to bayonet mount approx. 144mm
Largest diameter approx. 108/150mm (with/without tripod plate)
Weight approx. 1110g (39 oz)
